Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 185w 915nm fiber laser diode pump module. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

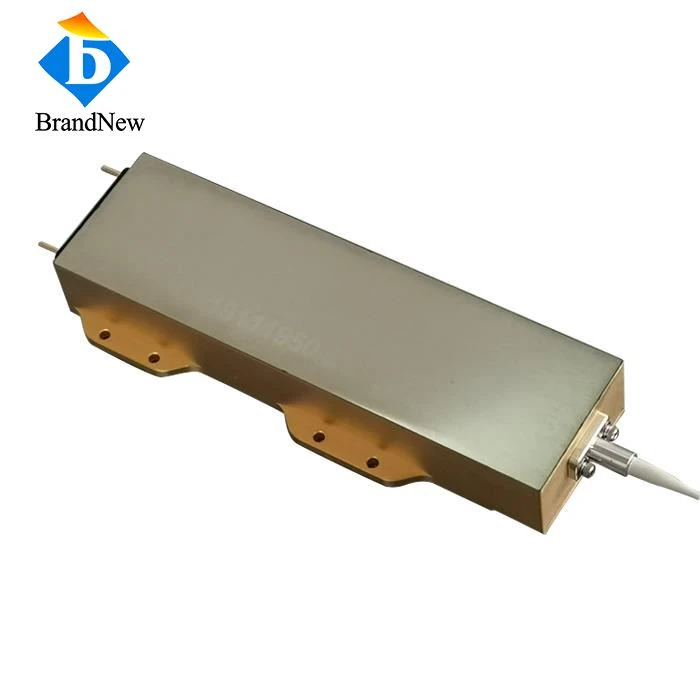

185W 915nm Fiber Laser Diode Pump Module
Overview
Features:
185W high power @915nm wavelength
Highly efficient
Highly stable
Superior beam quality
Long diode lifetime
Applications:
Suitable for solid state laser pumping, medical and material processing use
Fiber coupled laser diodes are used in a variety of industrial applications, such as laser cutting, laser welding, and laser marking. Lasers can be used to cut materials, weld metal, and mark objects with permanent markings. They are also used in a variety of other industrial applications, such as printing, packaging, and manufacturing.
Spec sheet:
Item No.: FC915DL185
| Optical | |
| Center Wavelength | 915nm |
| Output Power | 185W |
| Spectral Width FWHM | 6nm |
| Fiber | |
| Fiber Core | 135um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1~2m |
| Fiber Connector | Bare end/SMA905 |
| Electrical | |
| Operating Current Iop | 14A |
| Threshold Current Ith | 0.9A |
| Operating Voltage Vop | 23V |
| Thermal | |
| Operating Temperature | 15~35℃ |
| Wavelength Temp. Coefficient | 0.3nm/℃ |
Drawing:
