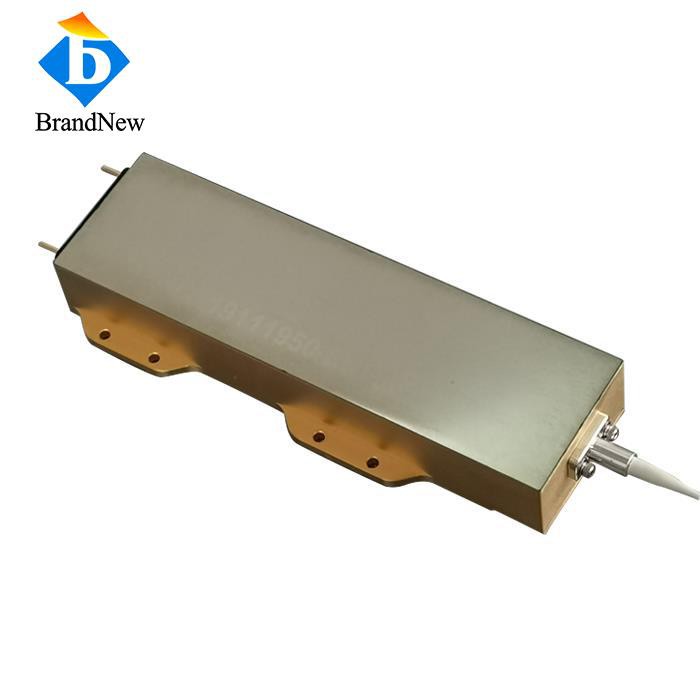

100W 975nm Fiber Coupled Diode Laser

Product Description

‌Wide Application‌: 975nm wavelength lasers or optical signals have important applications in many fields. For example, in fiber laser pumping, fiber sensor light sources, laser printing and typesetting systems, direct application in laser processing, medical cosmetology, military laser systems, display and entertainment, and high-power EDFA, 975nm wavelength has its unique application value‌1. In addition, 975nm wavelength optical signals are also used as pump sources for all-solid-state UV lasers. By end-face pumping Nd crystals, high-stability all-solid-state 355nm UV lasers can be operated‌

Key features:

High power 100W output at 975-980nm

CW operation

Hermetically sealed, electrically isolated case

Multimode fiber 105um, NA 0.22

2




Spec sheet

Item No.: FC975DL100

Optical
Wavelength 975nm
Wavelength Tolerance ±10nm
Output Power 100W
Spectral Width FWHM 4nm
>90% Energy 0.15NA
Slope Efficiency 12W/A
Fiber
Fiber Bend Radius >40mm
Fiber Core/Cladding/Buffer Diameter 105um/125um/250um
Fiber Length 1.5m
Fiber Connector Bare
Fiber Jacket 0.9mm
Electrical
Operating Current Iop  10A
Threshold Current Ith 0.5A
Operating Voltage Vop  23V
Power Conversion Efficiency 45%
Thermal
Operating Temperature 15~35℃
Storage Temperature -20~55℃
Wavelength Temperature Coefficient  ~0.3nm/℃





Package Drawing

VERN}LB8}_P9I60XK1XM)W7
