30W 976nm Fiber Coupled Diode Laser With PD
Quick details:
CW working mode, 30W output power
Fiber: 200um/0.22NA/1-2m/SMA905
PD function optional with currant 200~2000μA
Quality Guarantee: Factory burn-in tested for 48hours and one year warranty for workmanship and materials after receipt of items.
Application:
Fiber optic sensors
Medical use
Fiber pumping source
Bio technology
Operating the product outside of its maximum ratings may cause device failure or a safety hazard. Power supplies used with the device must be employed such that the maximum peak optical power cannot be exceeded. A proper heatsink for the Device on thermal radiator is required, sufficient heat dissipation and thermal conductance to the heatsink must be ensured.
Spec sheet:
Item No.: FC976DL30
|
Optical |
Typical Value |
|
Center Wavelength λ |
976±10nm |
|
Output Power |
30W |
|
Spectral Width FWHM |
6nm |
|
Electrical |
|
|
Operating Current Iop |
12A |
|
Threshold Current Ith |
1.0A |
|
Operating Voltage Vop |
4.8V |
|
Power Conversion Efficiency |
45% |
|
Fiber |
|
|
Fiber Core Diameter |
200um |
|
Fiber Numerical Aperture |
0.22NA |
|
Fiber Length |
1~2m |
|
Fiber Connector |
SMA905 |
|
Thermal |
|
|
Operating Temperature |
25~35℃ |
|
Storage Temperature |
-20-70℃ |
|
Wavelength Temperature Coefficient |
～0.3nm/℃ |

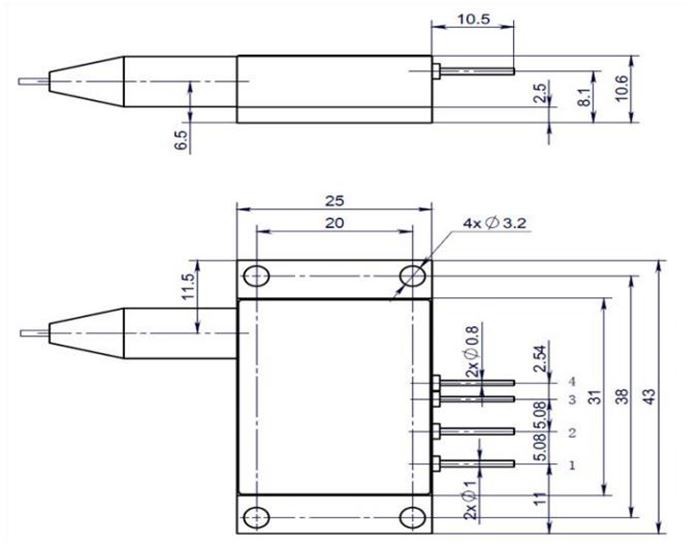

Drawing
![M{8UWTI0L]69Z%`UN2%K%FY](/Content/uploads/202098745/202003231321433540584.png "product-1-1")
