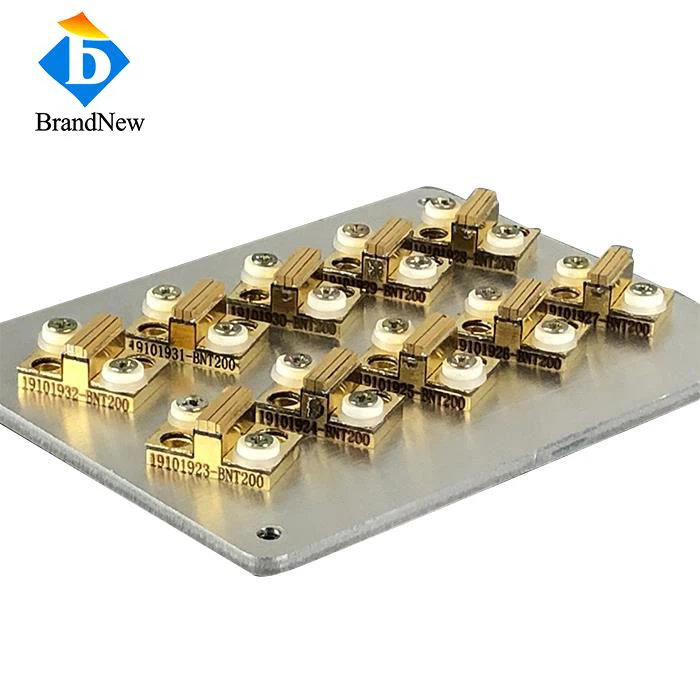

600W 808nm Conduction Cooled Diode Arrays
600W 808nm Conduction Cooled Diode Arrays are mainly used in industrial detection, laser printing, optical storage, fiber optic communication, laser medical treatment, military field and other fields.
In the military field, horizontal array lasers are used in important military means such as laser ranging, laser radar, deep-sea communication, etc., and play a unique advantage and capability.
Features:
High power
Operational mode: quasi-continuous wave
Compact and Planar Design
Center Hole for Modular Alignment
Applications:
Widely used in Defense and Diode-Pumped Solid-State market.
Data sheet:
Item No.: CC808HA600
| Optical | Typical Value |
| Center Wavelength | 808±10nm |
| Output Power | 600W |
| Quantity of Bars | 6 |
| Working Mode | QCW |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Frequency | 100Hz |
| Pulse Width | <200us |
| Duty Cycle | <2% |
| Electrical | |
| Operating Current Iop | 100A |
| Threshold Current Ith | 15A |
| Operating Voltage Vop | 12V |
| Thermal | |
| Operating Temperature | 25℃ |
| Storage Temperature | 0-55℃ |
Size:
