Description

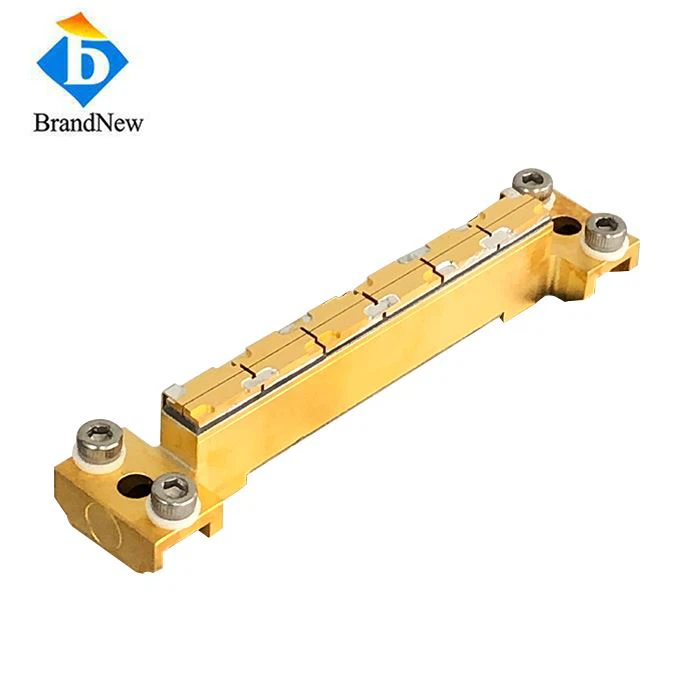

6-Bar 808nm 480W QCW Diode Laser Horizontal Array
Features:
- 808nm near-infrared wavelength with 480W QCW output
- 6-bar horizontal array realizes high energy density
- TE polarization mode ensures high polarization purity
Applications:
- Precision Diamond Cutting: Specialized for cutting natural diamonds, synthetic diamonds and diamond composites.
- Solid-State Laser Pumping: Serves as a high-performance pump source for Nd-doped and Yb-doped solid-state lasers
- Material Processing: Extendable to cutting and surface modification of other super-hard materials
The 6-bar 808nm 480W QCW horizontal diode laser array is a high-precision, high-power optical source tailored for diamond cutting and super-hard material processing. Its TE polarization mode, 6-bar high-power array design and efficient thermal management solve the core challenges of low efficiency and thermal damage in diamond cutting.
Data Sheet
Item No: WC808HA480
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±5nm |
| Output Power | 480W |
| Working Mode | QCW |
| Number of Bars | 6 |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 10Deg |
| Polarization Mode | TE |
| Electrical | |
| Operating Current Iop | 6A |
| Threshold Current Ith | 0.7A |
| Operating Voltage Vop | 1.2V |
| Pulse Width | <200ms |
| Frequency | 1-20Hz |
| Duty Cycle | <40% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | -40~+70℃ |
| Coolant | Filtered Water |
| Water Flow Rate | 2.8L/min |
| Input Water Pressure | 0.4Mpa |
Drawing:
