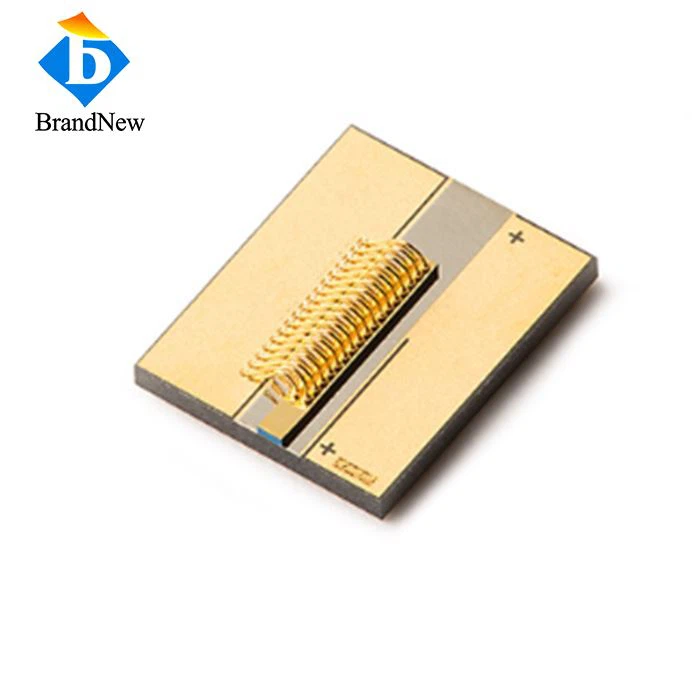

22W 940nm COS Laser Diode
The 22W 940nm COS Laser Diode employing AuSn bonding and P Down package with multiple advantages of high reliability, stable output power, high power, high efficiency, long lifetime and high compatibility, and are widely applied in the market.This chip on submount laser diode package requires soldering to heatsink correctly.
Feature:
High conversion efficiency;
Working life > 20000h;
Low dark current, Low capacitance;
High reliability, Long operation life;
Customized products for customers.
Specification:
Item No: COS940DL22
| Optical | |
| Center Wavelength | 940±10nm |
| Output Power | 22W |
| Emitter Width | 190um |
| Electrical | |
| Operating Current Iop | 22A |
| Threshold Current Ith | 1.4A |
| Operating Voltage Vop | 1.6V |
| Slope Efficiency | 0.95W/A |
| Thermal | |
| Operating Temperature | 15-35℃ |
| Storage Temperature | -30~70℃ |
| Wave Temp. Coefficient | 0.3nm/℃ |

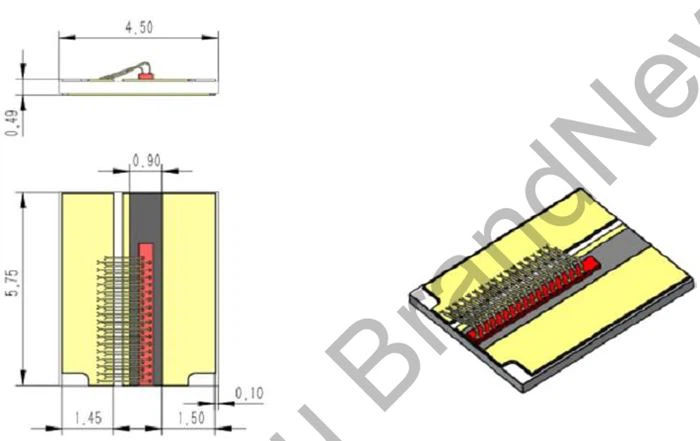

Size Drawing:
