Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 760nm 500mW 100um COS Chip Laser Diode. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

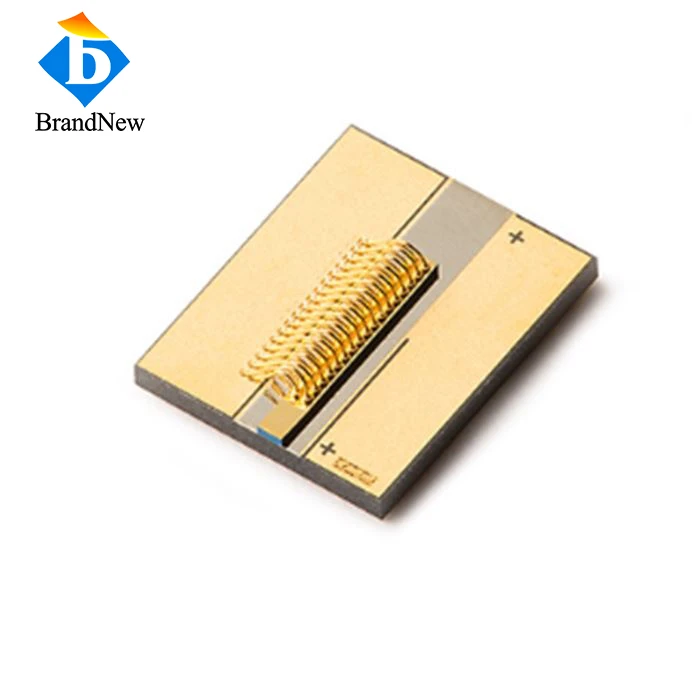

760nm 500mW 100um COS Chip Laser Diode
Features:
- COS chip-on-submount packaging for easy integration.
- 500mW stable output power at 760nm central wavelength.
- 100μm emitter width with controlled beam divergence.
Applications:
- Applied in gas detection systems for oxygen concentration measurement.
- Used in medical phototherapy devices for tissue light irradiation treatment.
- Deployed in optical sensing equipment for biomedical signal monitoring.
- Suitable for industrial optical inspection and spectroscopic analysis.
This 760nm 500mW COS chip laser diode features 100μm emitter width, narrow spectrum width and reliable electro-optical performance. The COS packaging structure simplifies assembly for optical modules. It delivers stable optical output under rated operating conditions, and is widely selected for gas sensing, medical phototherapy, spectroscopy and other precision optical systems.
Data Sheet
Item No: COS760DL05
| Optical | |
| Center Wavelength | 760nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 500mW |
| Emitter Width | 100um |
| Spectrum width FWHM | 6nm |
| Fast Axis FWHM | 30Deg |
| Slow Axis FWHM | 12Deg |
| Electrical | |
| Operating Current Iop | 0.5A |
| Threshold Current Ith | 1.2A |
| Operating Voltage Vop | 1.7V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
| Wavelength Temperature Coefficient | 0.35nm/℃ |

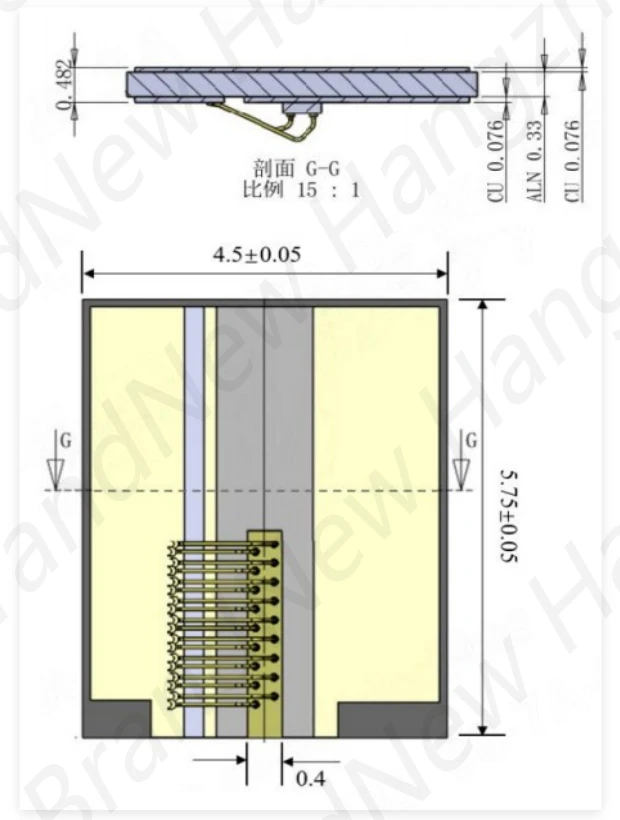

Drawing:
