Hangzhou Brandnew Technology Co., Ltd. is one of China's leading manufacturers and premier suppliers of advanced 100w 808nm unmounted laser bar. Operating a state-of-the-art factory, we specialize in the entire production spectrum—from high-performance chips, TO/F/C Mounts, COS, and MCC bars, to robust stacks and advanced fiber-coupled solutions.

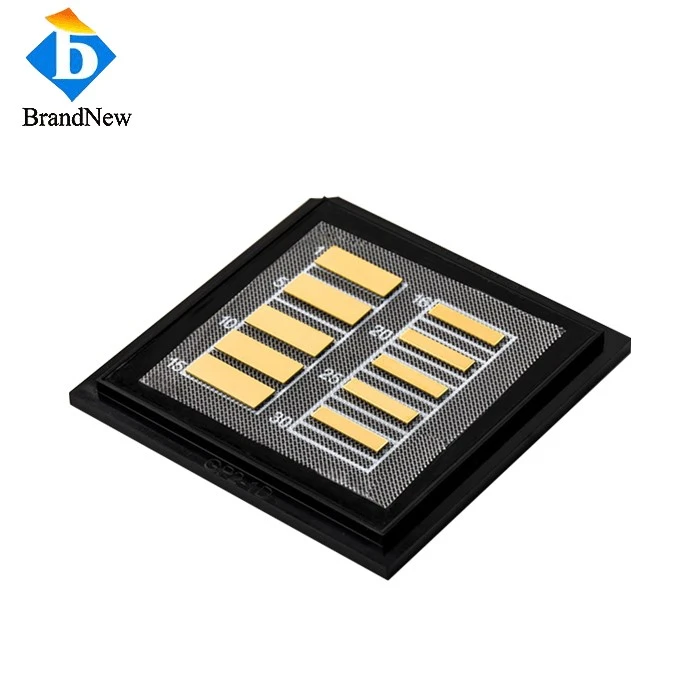

100W 808nm CW Unmounted Laser Bar
Features:
- 808nm near-infrared wavelength
- 100W continuous-wave (CW) output
- Unmounted, flexible integration design
Applications:
- Laser System R&D: Ideal for prototype development of hair removal devices and medical optical systems
- OEM/ODM Component Supply: Serves as a core optical component for manufacturers of mid-power laser equipment
- Laboratory Experiments: Suitable for laser-material interaction research, wavelength absorption testing
- Equipment Maintenance & Upgrade: Cost-effective replacement part for repairing
This 100W 808nm CW unmounted laser bar features stable continuous-wave output and a flexible unmounted design, enabling tailored integration into a wide range of laser systems. Unlike integrated stacks, its standalone structure allows for customized thermal management and housing matching, making it a reliable, cost-efficient choice for R&D projects, OEM manufacturing and equipment maintenance across aesthetic, industrial and medical laser fields.
Data Sheet
Item No:LC808SB100
| Optical | |
| Center Wavelength | 808nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 100W |
| Working Mode | CW |
| Emitter Width | 100um |
| Pitch | 200um |
| Emitter quantity | 47 |
| Bar Length | 10mm |
| Cavity Length | 1.5mm |
| Electrical | |
| Operating Current Iop | 95A |
| Threshold Current Ith | 95A |
| Operating Voltage Vop | 1.8V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | 0~+55℃ |
| Wavelength Temperature Coefficient | 0.3nm/℃ |
Drawing:
