These high power pump lasers deliver very stable wavelength light with a narrow emission bandwidth due to the integrated volume Bragg grating. Utilizing volume grating, the emitting wavelength is stabilized at 976 nm and insensitive to operating temperature and current. They deliver up to 450 Watts in CW mode via the 105µm-core or 200µm-core fiber. Pulsed-mode operation is also possible.

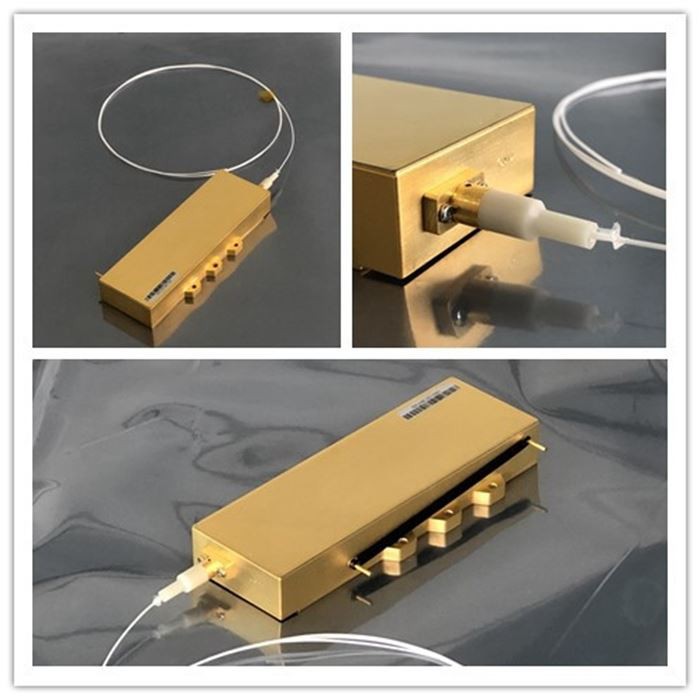

The diode module comes with a hermetically sealed 2-pins package. The module is rigorously tested and validated to ensure long term reliability and long life. It is an ideal pumping source for high power fiber laser.
The laser module is designed to be heat-efficient, but the package must be securely mounted to a temperature-controlled mounting surface to ensure safe operation and long operating lifetimes.
Key features:
Center Wavelength 976nm
< 1.0nm Laser Spectral Line Width
Output Power up to 450W (CW)
200 μm Multimode Fiber, NA=0.22
Fiber Terminated with bare end
Operating under continuous wave (CW) conditions
1040nm-1200nm feedback protection
