Why Is the 670nm 2mW VCSEL Laser Diode Redefining Light Source Performance in Prototyping and Advanced Microscopy Systems?
In modern optical instrument prototyping, bio-imaging, and fluorescence microscopy development, engineers face a persistent tradeoff when selecting illumination sources. Conventional Light Emitting Diodes (LEDs) provide broad spatial uniformity and speckle-free illumination, but their low optical power density and poor beam collimation impair directional light delivery. Edge-emitting laser diodes, while offering high coherence and narrow divergence, suffer from asymmetric elliptical beams, pronounced spatial speckle noise, and steep thermal drift.
To bridge this gap for optical design teams developing a new microscopy product or launching a prototyping project, BrandNew Technology has introduced the TO670VC0002 670nm 2mW VCSEL TO Diode Laser. Utilizing Vertical-Cavity Surface-Emitting Laser (VCSEL) architecture with an integrated flat window TO-Can package, this compact red light source combines excellent beam collimation with a homogenized beam spot, presenting an ideal optical engine for next-generation instrumentation.
Key Technical Parameters of the TO670VC0002 VCSEL Module
Engineered for ultra-low power consumption and consistent continuous-wave (CW) or quasi-continuous-wave (QCW) operation, the TO670VC0002 integrates the following specifications:
Emitting Wavelength & Power
Operates in the visible red waveband at 670nm with a stable output power of 2mW.
01
Flexible Working Modes
Supports both Continuous Wave (CW) and Quasi-Continuous Wave (QCW) drive modes (rated 0.5ms pulse width at a 1% duty cycle).
02
Circular Beam Divergence
Features a symmetric 22° divergence angle, facilitating straightforward collimation optics without needing anamorphic prism pairs or cylindrical lenses.
03
Low Threshold & High Slope Efficiency
Requires a low threshold current of just 3mA, operating efficiently at 12mA current and 2.5V forward voltage with a high slope efficiency of 0.7 W/A.
04

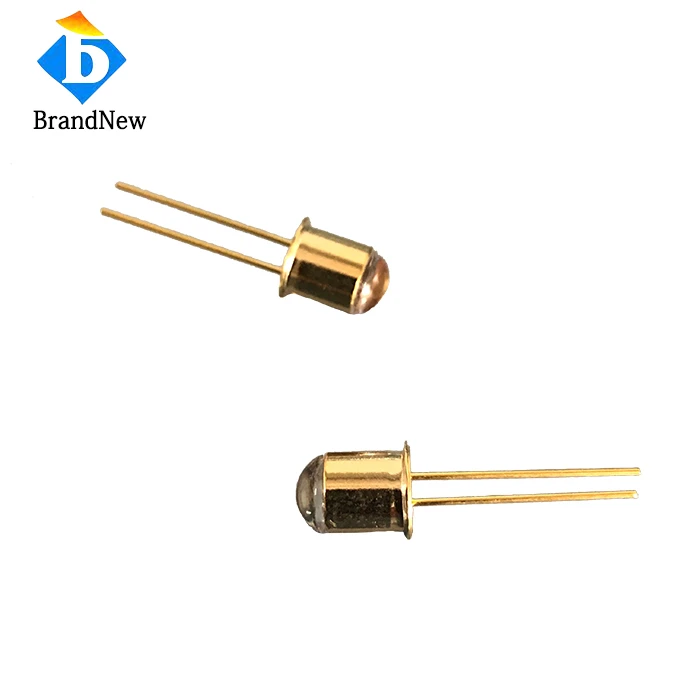

Miniature TO-Can Encapsulation
Housed in a standard 3-pin TO-Can package base, cap height) with a 1.6mm flat optical glass window.
05
Advantages Over LEDs and Edge-Emitting Lasers in Prototyping & Microscopy
When evaluating light engines for a new prototyping project or testing candidate sources for advanced microscopy, the TO670VC0002 VCSEL diode addresses the historical drawbacks of legacy sources:
Homogenized Beam Spot and Speckle Reduction
Standard edge-emitting lasers generate intense spatial speckle patterns caused by high temporal and spatial coherence. Speckle noise degrades image contrast, introduces graininess, and distorts quantitative photon counting in fluorescence imaging. The 670nm VCSEL structure naturally produces a uniform beam spot with a circular, symmetrical uniform beam profile. By offering a homogenized beam spot and an intrinsic absence of speckles, it provides a significantly cleaner background signal than traditional laser diodes while maintaining far higher spatial brightness than LEDs.
Superior Collimation and Optical Delivery
Compared to LEDs-which emit diffuse light across broad Lambertian angles-the 22° divergence profile of the TO670VC0002 allows optical engineers to easily collimate the output into tight, highly directional beams or couple it into optical fibers. This superior collimation capability ensures efficient light throughput through objective lenses and dichroic filters, allowing developers testing new microscopy products to maximize signal-to-noise ratios without complex optical alignment setups.
Low Thermal Sensitivity and Low Power Drive
Operating at a 12mA drive current and 2.5V forward voltage, the module generates negligible thermal dissipation. This minimal thermal signature prevents localized heating in delicate biological samples or microfluidic channels-a common issue with high-current LED arrays or edge-emitting laser assemblies.
Broader Commercial and Industrial Application Domains
Beyond biomedical imaging and optical prototyping, the 670nm 2mW VCSEL diode laser serves a wide range of mainstream optoelectronic applications:
Particle Sizing and Aerosol Monitoring
The uniform beam profile and low noise output facilitate precise optical scattering measurements for environmental dust sensors and liquid particle counters.
Laser Aiming and Alignment
The circular 670nm red beam spot provides a visible, crisp target point for industrial alignment tools, survey instruments, and surgical positioning systems.
Optical Sensing and Encoders
Low threshold current (3mA) and rapid modulation response make it ideal for compact optical rotary encoders and non-contact proximity displacement sensors.
Quality Assurance and Global OEM Supply
BrandNew Technology manufactures the TO670VC0002 in Hangzhou under strict optoelectronic quality control protocols, conducting 100% burn-in and optical spectrum screening across a wide operating temperature range (-40°C to +85°C storage). Overseas medical device developers, university research labs, and industrial instrument OEMs can rely on BrandNew for stable supply and prompt technical support.
To request technical datasheets, mechanical CAD files, or evaluation samples for your optical prototyping project, contact our technical team:
