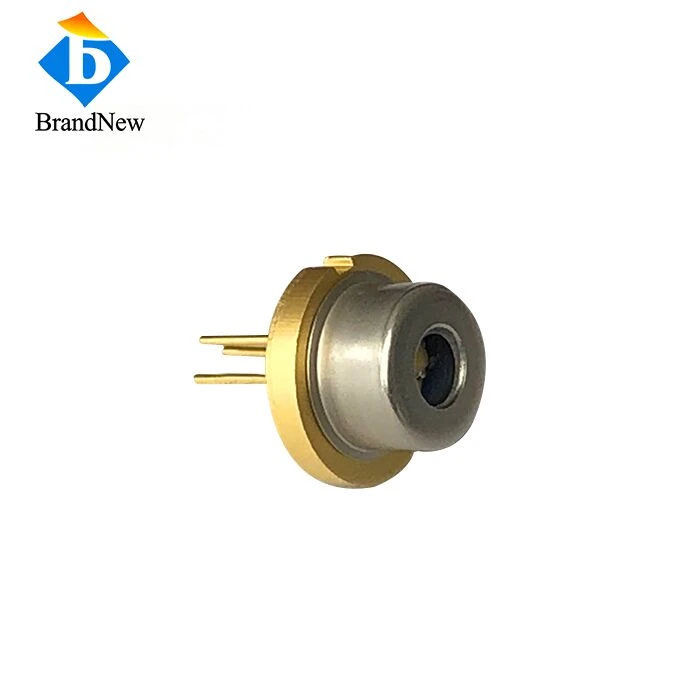

50W 1550nm TO-Can Laser Diode
Description
We offer state-of-the-art 1550nm TO-mount laser diodes with up to 50W of optical output power. These versatile devices are classified as multimode devices and are available in standard 9 mm TO can packages to ensure compatibility with a wide range of systems. Operating at a low current of 1000 mA, these gallium nitride laser diodes emit light at 1550 nm and can be used in a variety of applications such as direct imaging, display technology and biomedical research. The lasers are housed in 9 mm diameter TO canisters with multiple transverse mode space configurations. These high-performance TO diode lasers achieve exceptional power of up to 50 watts in continuous wave (QCW) operation.
Features
- To-can Package with FAC
- Long lifetime, good performance
- Efficient quantum well structure
- Hermetically sealed package
Applications
- Range finding
- Laser Radar
- Laser sensor
- Scientific research
Data sheet
Item No.: TO1550KZ50
| Optical | |
| Center Wavelength | 1550nm |
| Wavelength Tolerance | ±20nm |
| Output Power | 50W |
| Fast Axis Divergence | 8Deg |
| Slow Axis Divergence | 10Deg |
| Electrical | |
| Threshold Current | 1A |
| Operating Current | 55A |
| Working Voltage | 40V |
| Pulse Width | 200ns |
| Duty Cycle | 0.1% |
| Frequency | 5kHz |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~80℃ |
Drawing
BrandNew's pulsed laser diodes (PLDs) integrate miniature optics to ensure distance measurements with the highest efficiency and precision. The so-called Fast Axis Collimation (FAC) lens compensates for the astigmatism that occurs in edge-emitting PLDs, thus ensuring that as many photons as possible reach the target.
