Description
5W 940nm TO-Mount LD
Features:
940nm wavelength; 5watt.
Highest power of 940nm for TO-Mount
Available PD or FAC function
Pin length can be customized
Aluminum free strained subwell structure in active region.
Good stamping technology and precision of sintering technology for metal stamping parts and glass to metal seal parts.
Applications:
Laser Light Source
Medical Application
Laser Detection
Industry Use
Data sheet:
Item No.: TO940DL5
| Optical | |
| Center Wavelength | 940nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 5W |
| Electrical | |
| Operating Current Iop | 5A |
| Threshold Current Ith | 0.8A |
| Working Voltage | 2V |
| Thermal | |
| Operating Temperature | 10~35℃ |
| Storage Temperature | -40~80℃ |

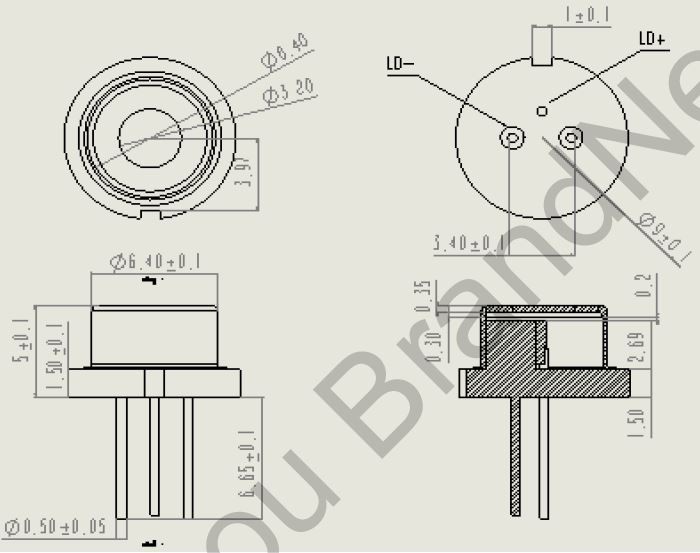

Drawing:
