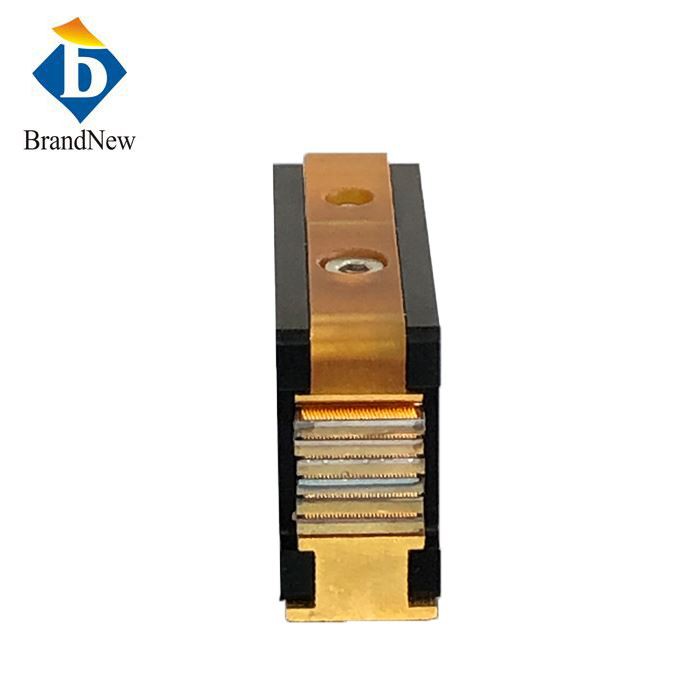

600W 808nm Micro Channel Diode Laser Stack
overview
Quick details:
Diode Bar Pitch:1.8mm
5~20 bars per stack
100w laser diode bar
Micro channel bring longer lifetime
Fast Axis Collimation (FAC) available.
Main application: hair removal
Micro channel:
large contact area between coolant and heat sink, close distance between chip and coolant, good heat dissipation, and it can work in CW working mode when the water quality reaches the standard.
Data sheet
Item No.: WC808VS600
|
Optical |
|
|
Center Wavelength |
808nm |
|
Output Power |
600W |
|
Spectral Width FWHM |
4nm |
|
Slope Efficiency |
1.0W/A |
|
Electrical |
|
|
Operating Current Iop |
110A |
|
Threshold Current Ith |
20A |
|
Operating Voltage Vop |
12V |
|
Power Conversion Efficiency |
50% |
|
Thermal |
|
|
Operating Temperature |
25℃ |
|
Storage Temperature |
-40~80℃ |
|
Wavelength Temperature Coefficient |
0.3nm/℃ |
Drawing

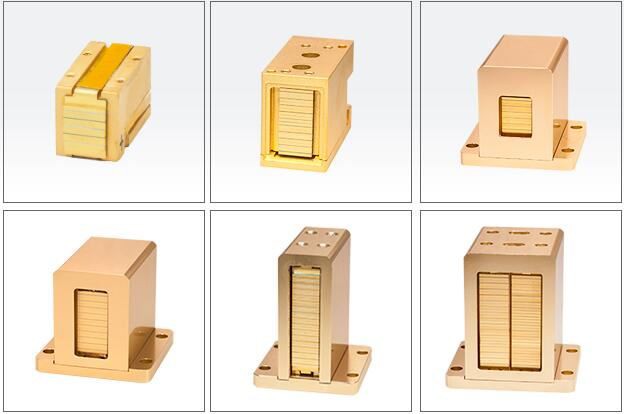

Macro channel laser stack is also available, pls contact me for more info
FAQ:
How does the wavelength of a hair removal laser diode stack affect its performance?
755nm suitable for white skin hair removal,808nm laser is suitable for white and yellow skin (type I-IV) hair removal, 1064nm is suitable for brown and black skin (type IV-VI) hair removal.
