Description

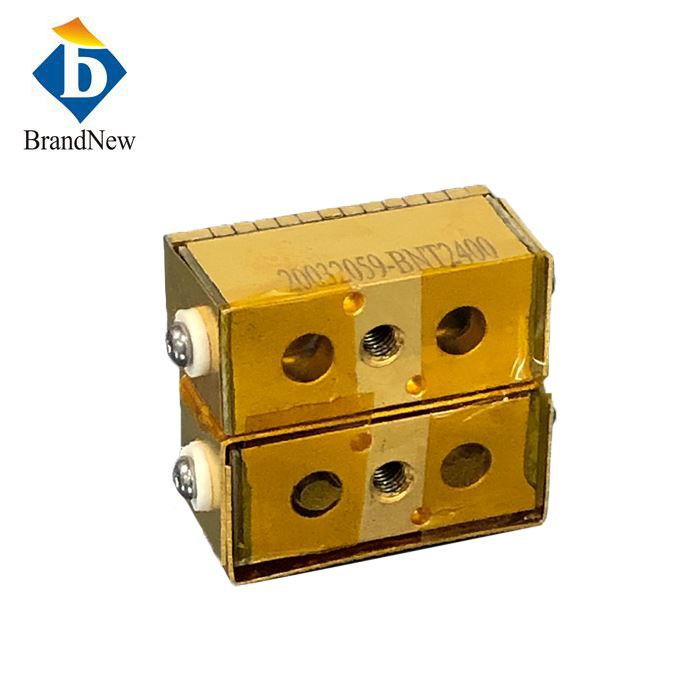

800W Triple Wavelength 16 Bars Double Stack Array Diode Laser For Hair Removal Machine
Features:
- The newest product double stack array with 16 Bars
- 800W output power with 7558081064nm central wavelength
- QCW working mode, ≤400ms Pluse Width, ≤40% Duty Cycle
- Customized housing available
- Small bar-to-bar pitch for increased brightness
Application:
- PCB Soldering
- Cryolipolysis Slimming
- Medical Technology
- Pumping source
- Material Processing
- Scientific Research
Data Sheet
Item No: WC781VS800
Item Name: Double Stack Array 800W Diode Laser
| Optical | |
| Center Wavelength | 755/808/1064nm |
| Wavelength Tolerance | ±20nm |
| Working Mode | QCW |
| Output Power | 800W |
| Number of Bars | 16 |
| Pulse Width | ≤400ms |
| Duty Cycle | ≤40% |
| Fast Axis Divergence(FWHM) | 38Deg |
| Slow Axis Divergence(FWHM) | 12Deg |
| Electrical | |
| Operating Current | 50A |
| Threshold Current | 10A |
| Operating Voltage | 28V |
| Power Conversion Efficiency | 50% |
| Thermal | |
| Operating Temperature | 20~30℃ |
| Storage Temperature | 0-55℃ |
| Others | |
| Coolant | Distilled Water |
| Flow Rate/Bar | 5~6L/min |
| Max Inlet Pressure | 350~500kPa |
| Water Temperature(No Condensation) | 23~27℃ |
| Filtered Water Particles | <20μm |
Drawing:
