Description

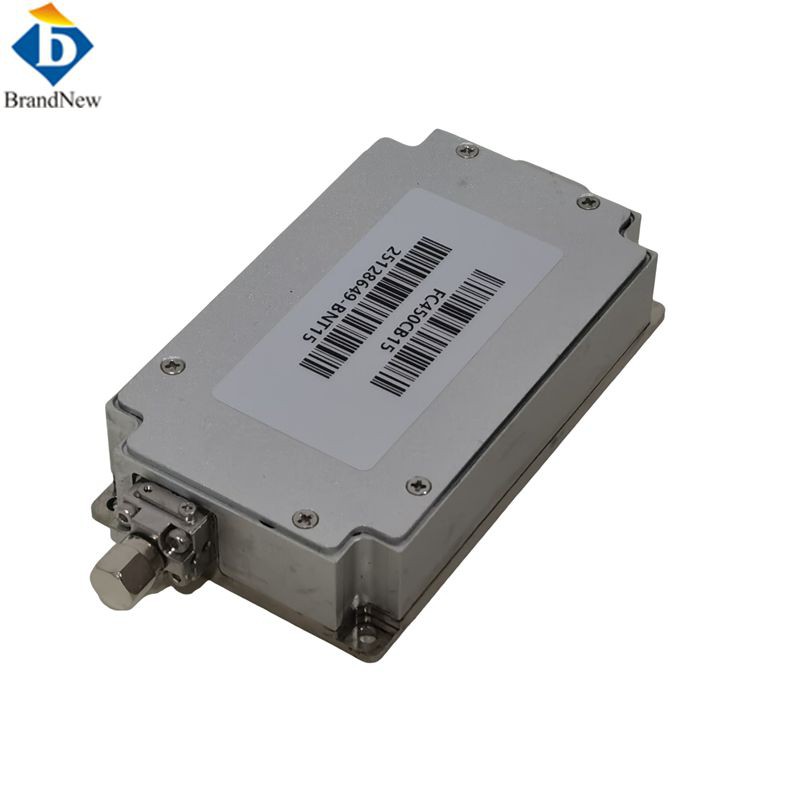

450nm Detachable Fiber Coupled CW Laser
Features:
- 450nm visible blue wavelength with CW output
- 200μm fiber core for balanced energy transmission, spot size.
- Detachable SMA905 connector design
Applications:
- Material Processing: Used in laser engraving, 3D printing (SLA/DLP resin curing) and thin-film scribing of glass
- Biomedical Applications: Applied in fluorescence excitation, flow cytometry and photodynamic therapy equipment
- Industrial Inspection: Integrated into machine vision systems for high-contrast defect detection, barcode scanning
The 450nm detachable fiber coupled CW laser features a 200μm fiber core and SMA905 connector, combining visible blue wavelength output, flexible connectivity and stable performance. Its detachable design simplifies maintenance and system integration, making it a versatile light source for material processing, biomedical research, industrial inspection and scientific experiments that demand reliable blue laser illumination.
Data Sheet
Item No: FC450CB15
| Optical | |
| Center Wavelength | 450±15nm |
| Working Mode | CW |
| Output Power | 15W |
| Fiber | |
| Fiber Core | 200um |
| Fiber Numerical Aperture | 0.22NA |
| Fiber Length | 1m |
| Fiber Connector | SMA905 |
| Electrical | |
| Operating Current Iop | 3A |
| Threshold Current Ith | 0.3A |
| Operating Voltage Vop | 24V |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -30~70℃ |
Drawing:
