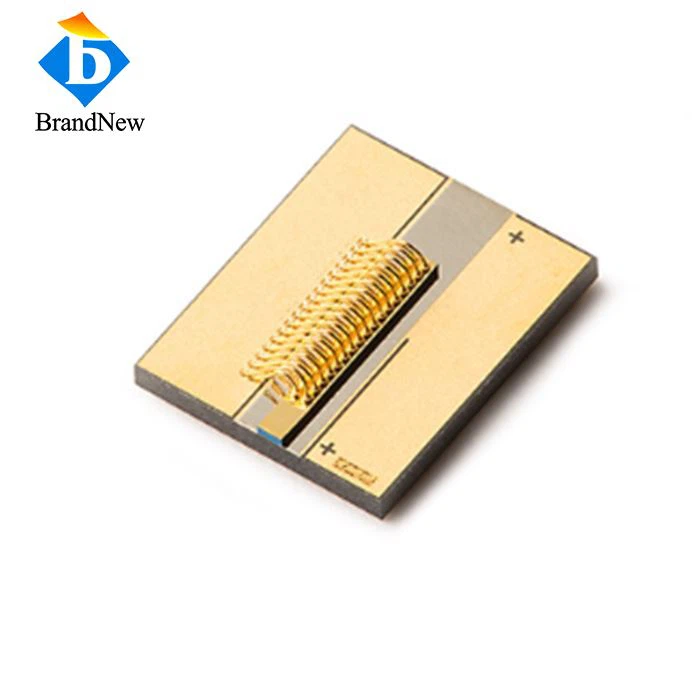

1W 1940nm COS Diode Laser
Features
Cost effective
Industrial standard AlN submounts
AuSn soldering ensures long term reliability
High Efficiency
Standard Low Cost Package
Application: Plastic Welding
Data sheet:
Item No.: COS1940DL1
Optical | |
Center Wavelength | 1940nm |
Output Power | 0.8~1W |
Spectral Width FWHM | 6nm |
Emitter Size | 100um |
Electrical | |
Operating Current Iop | 2.3A |
Threshold Current Ith | 0.4A |
Operating Voltage Vop | 2.0V |
Thermal | |
Operating Temperature | 15-55℃ |
Storage Temperature | -30~70℃ |
Drawing:
