Why Is the 785nm Fiber-Coupled Laser Diode Transforming Near-Infrared ICG Surgical Navigation and Angiography Systems?
Industry Insights and Optoelectronic Trends Published by BrandNew Technology

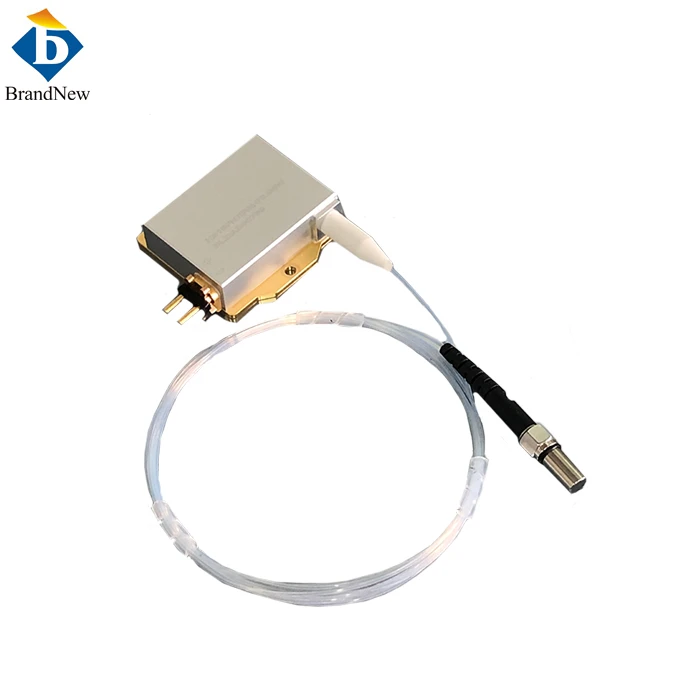

As near-infrared (NIR) fluorescence imaging becomes an essential tool in modern image-guided surgery, high-stability optical excitation sources are critical for precise real-time tissue visualization. BrandNew Technology introduces its high-power 785nm 6W fiber-coupled diode laser (FC785DL6), engineered specifically to meet the rigorous excitation requirements of Indocyanine Green (ICG) fluorescence imaging, ICG fluorescence navigation, and ICG fluorescence angiography.
In modern minimally invasive surgery, oncology, and vascular reconstruction, real-time identification of anatomical boundaries and tissue perfusion is vital to surgical precision and patient outcomes. Near-Infrared (NIR) fluorescence imaging leveraging Indocyanine Green (ICG) has emerged as a gold-standard diagnostic modality. ICG is a clinically approved fluorophore that exhibits an optical absorption peak in the near-infrared spectrum near 780–785 nm and emits fluorescence around 820–840 nm.
To excite ICG efficiently deep within biological tissue without causing thermal collateral damage, surgical equipment integrators require laser sources that deliver high optical power, narrow spectral stability, and uniform light delivery. BrandNew Technology's FC785DL6 785nm 6W Fiber Coupled Diode Laser is specifically optimized for integration into medical laser consoles, laparoscopic fluorescence towers, and intraoperative surgical navigation devices.
Core Technical Features of the FC785DL6 Laser Diode
Engineered for high reliability and consistent continuous-wave (CW) performance, the FC785DL6 diode laser incorporates several optimized optoelectronic parameters for medical device manufacturing:
Center Wavelength & Tolerance
Operating at 785nm (±10nm), the emission wavelength precisely matches the excitation absorption maximum of Indocyanine Green (ICG) dye.
01
Continuous Optical Power
Delivers up to 6W of Continuous Wave (CW) power, providing intense photon flux for deep photon penetration in biological tissues.
02
High-Brightness Fiber Coupling
Coupled into a 105µm fiber core with a 0.22 Numerical Aperture (NA) and 1.0m length, ensuring excellent spatial beam quality and uniform energy distribution.
03
Standardized Medical Interface
Equipped with an industry-standard SMA905 fiber connector, facilitating modular connection to surgical light guides or optical accessories.
04
Electrical Efficiency & Thermal Control
Operates at a low threshold current of 1.0A, a typical operating current of 3A, and an operating voltage of 6V. With a low wavelength temperature coefficient of 0.3 nm/°C, the emission spectrum remains highly stable across varied thermal environments.
05
Key Advantages in ICG Clinical Applications
High-Resolution ICG Fluorescence Imaging
In ICG fluorescence imaging, achieving a high signal-to-background ratio (SBR) requires an excitation light source capable of penetrating deeply into tissue while avoiding background auto-fluorescence interference. Delivering a continuous-wave output power of 6W through a 105µm fiber core (0.22 NA), the FC785DL6 delivers intense, highly concentrated excitation energy. This high photon density guarantees efficient fluorophore activation even when ICG is diluted in deep-seated parenchymal tissues, allowing high-resolution CMOS/CCD medical cameras to capture clear diagnostic fluorescence images.
Precise Intraoperative ICG Fluorescence Navigation
During complex oncological surgeries (such as hepatectomy, sentinel lymph node mapping, and tumor margin detection), surgeons rely on real-time ICG fluorescence navigation to differentiate cancerous lesions from healthy tissue. The FC785DL6 laser features a standard SMA905 optical fiber connector, allowing straightforward coupling into surgical microscopes, endoscopes, or overhead surgical illumination heads. The uniform top-hat beam profile delivered through the 105µm multi-mode fiber ensures homogeneous illumination over the surgical field, eliminating blind spots and preventing false-negative margin assessments during real-time resection.
Dynamic ICG Fluorescence Angiography
In reconstructive plastic surgery, organ transplantation, and cardiovascular bypass procedures, evaluating tissue microvascular perfusion via ICG fluorescence angiography is critical to prevent ischemic tissue necrosis. The FC785DL6 operates in stable Continuous Wave (CW) mode with a low threshold current of 1.0A and controlled thermal drift (0.3 nm/°C). This uninterrupted, ripple-free optical output enables high-speed NIR cameras to capture smooth, quantitative video sequences of ICG dye wash-in and wash-out kinetics across blood vessels without optical flicker or power fluctuations.
To request detailed engineering specifications, customization options, or sample evaluation for medical device certification, contact our technical support team:
