Description

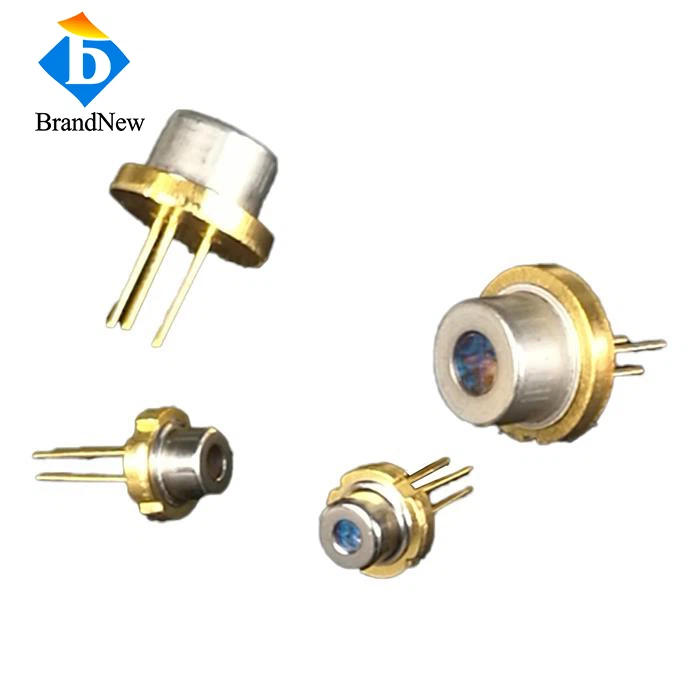

5mW 1750nm TO-Can Laser Diode
The Fabry-Perot laser diode produces a single-mode output at 1750 nm, delivering a power of 5 mW with a drive current of 90 A or lower. The threshold current typically stands at 60 mA. Housed in an SOT-148 package, this diode features an internal photodiode, enhancing both stability and reliability.
Key Features
1750nm (± 20nm), up to 5mW Output Power
5.6mm TO-Can Package (SOT-148)
Spectral Width (FWHM) < 5nm
Application
Laser sensor
Scientific research
Data Sheet
Item No: TO1750DL5
| Optical | |
| Center Wavelength | 1750nm |
| Wavelength Tolerance | ±20nm |
| Output Power | 5mW |
| Electrical | |
| Operating Current Lop | <90mA |
| Threshold Current Lth | <60mA |
| Operating Voltage Vop | 0.8V |
| Thermistor | |
| Operating Temperature | -40~50℃ |
| Storage Temperature | -40~80℃ |
Drawing:
