Description

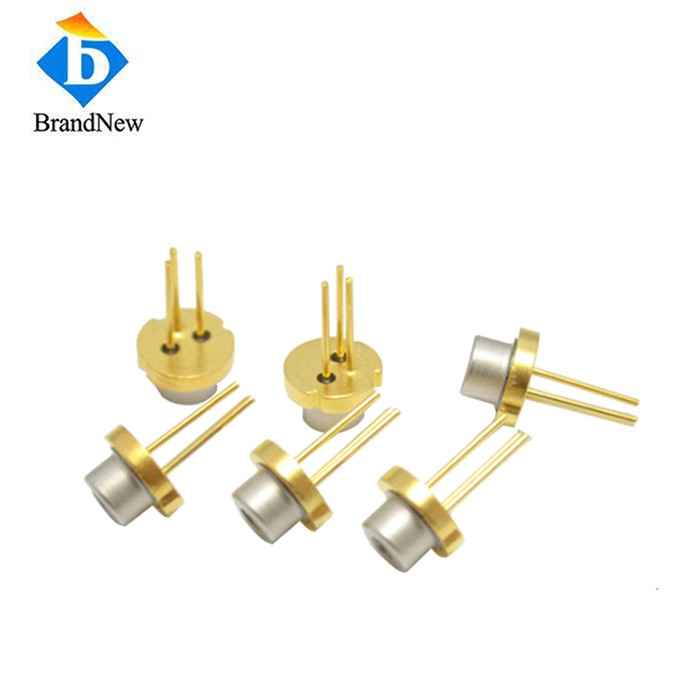

DFB 5mW 1550nm TO CAN Laser Diode
Features:
- 100W high-power pulse output at 905nm
- standard TO package for easy assembly and mass production
- High reliability and fast response
Applications:
- LiDAR Systems for Autonomous DrivingWidely used as the main laser emitter in automotive LiDAR and industrial ranging sensors.
- Range Finding & Distance MeasurementApplied in industrial rangefinders, drone obstacle avoidance, and surveying instruments.
- Security & Surveillance IlluminationUsed in active infrared night-vision systems for border monitoring, perimeter security, and critical-area protection.
Data Sheet
Item No: TO905KZ100
| Optical | Typical |
| Center Wavelength | 905nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 100W |
| Fast Axis Divergence FWHM | 10DEG |
| Slow Axis Divergence FWHM | 10DEG |
| Electrical | |
| Threshold Current Iop | 1A |
| Operating Current Iop | 35A |
| Working Voltage | 40V |
| Pulse Width | 100ns |
| Duty Cycle | 0.05% |
| Frequency | 1kHz |
| Thermal | |
| Test Temperature | 25℃ |
| Storage Temperature | -40~80℃ |
Drawing:
