Description

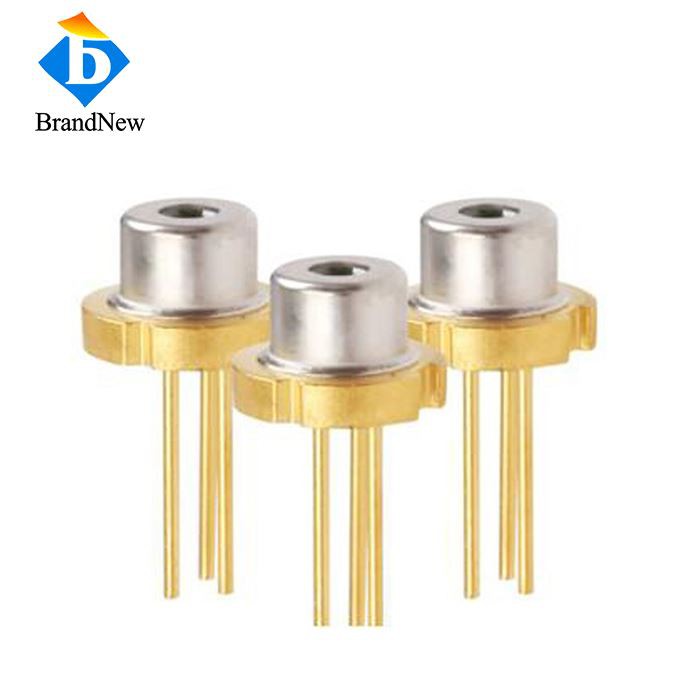

TO56 650nm 10mW TO CAN With PD Diode
Features:
- Stable 10mW output at 650nm,standard TO56 package
- With integrated PD for real-time power monitoring
- Compact structure, low power consumption
Applications:
- Laser Positioning & Alignment: Widely used in small equipment positioning, optical path alignment, and industrial automation auxiliary indication.
- Data Transmission: Applied in low-speed optical communication modules, short-distance fiber transmission systems, and optical signal detection equipment.
- Barcode Scanning & Optical Encoding: Integrated into barcode scanners, encoding readers, and optical identification equipment.
This TO56 650nm 10mW laser diode with integrated PD features a compact structure, stable output, and real-time power feedback capability. It is widely used in laser positioning, optical communication, biomedical detection, barcode scanning, and consumer electronics, providing a cost-effective and reliable light source for miniaturized optical systems.
Data Sheet
Item No: TO650PD001
| Optical | Typical |
| Center Wavelength | 650nm |
| Output Power | 10mW |
| Beam Divergence FWHM Fast | 36DEG |
| Beam Divergence FWHM Slow | 10DEG |
| Electrical | |
| Threshold Current Ith | 14mA |
| Operating Current Iop | 24mA |
| Operating Voltage Vop | 2.15V |
| PD current | 0.2mA |
| Thermal | |
| Test Temperature | -10~70℃ |
| Storage Temperature | -40~85℃ |

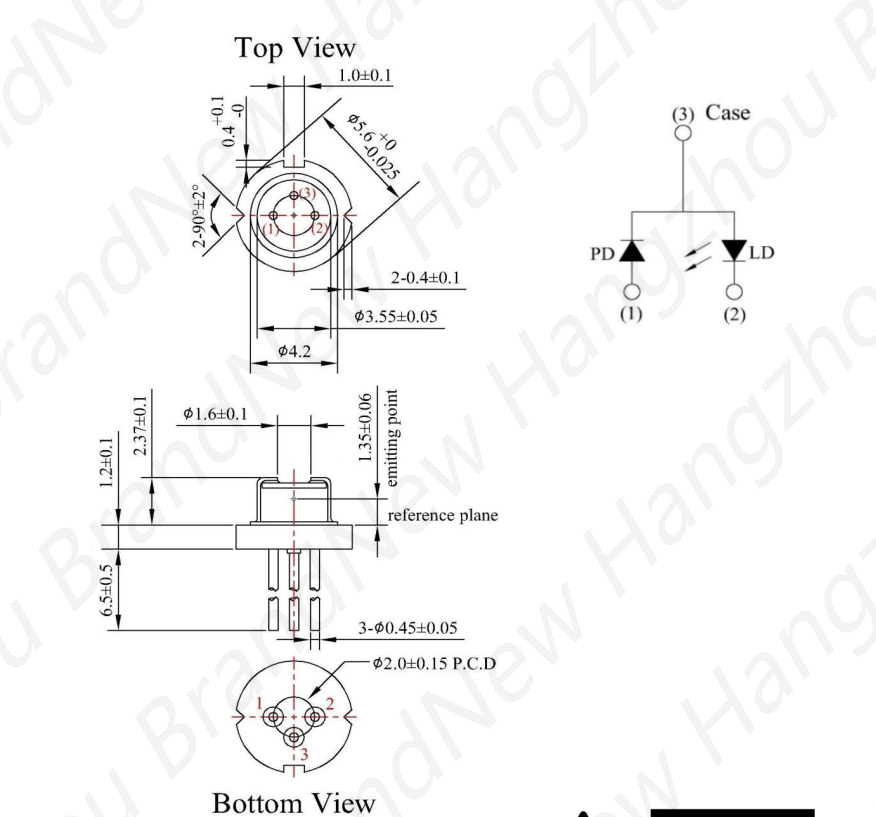

Drawing:
