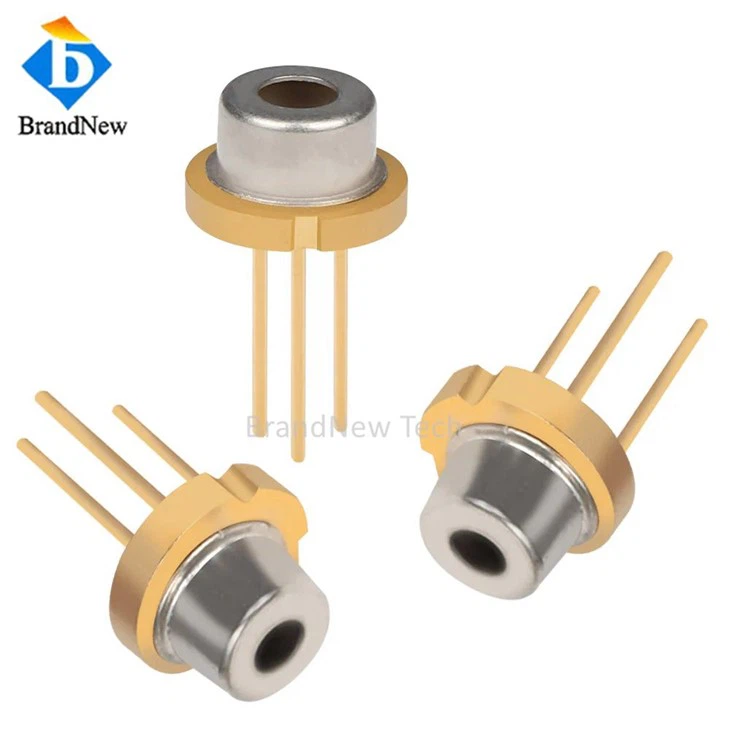

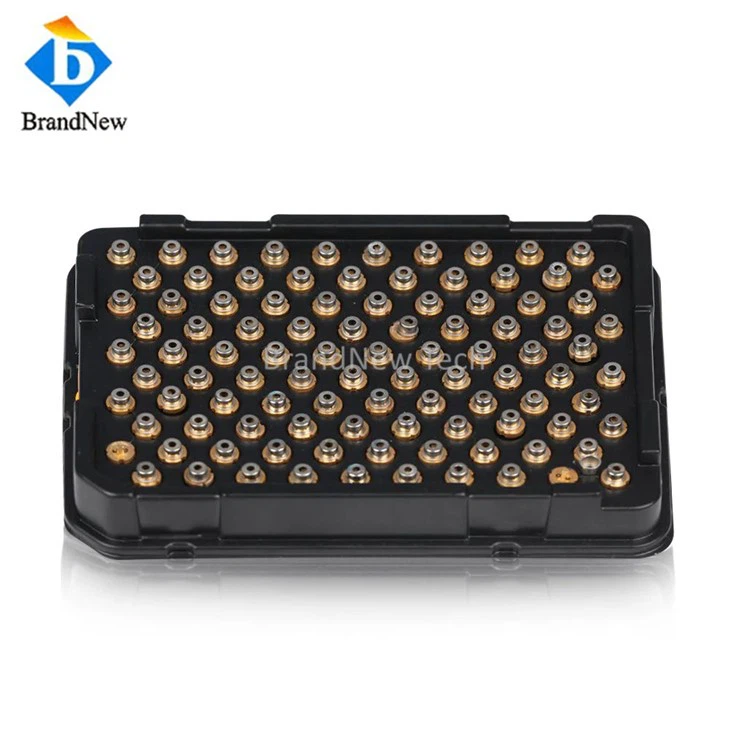

150mW 405nm TO Package Diode Laser
Features:
-
Wavelength: 405 nm (violet/near-UV)
-
Output Power: 150 mW (Continuous Wave)
-
Package Type: TO-Can (e.g., TO-18 or TO-56 available)
-
Beam Profile: Elliptical or nearly Gaussian
-
Operating Mode: Single-mode or multi-mode options
-
Compact Size: Ideal for space-constrained designs
-
Fluorescence Excitation:
Ideal for bio-imaging, DNA sequencing, and flow cytometry
-
Optical Data Storage:
Suitable for Blu-ray and high-density optical disc systems
-
Laser Printing & Lithography:
High-resolution photolithography and microfabrication
Specification
Item No.: TO405DL015
Item Name: 405nm 150mW TO Diode Laser
| Optical | |
| Center Wavelength | 405nm±10nm |
| Output Power | 150mW |
| Fast Axis Divergence | 20DEG |
| Slow Axis Divergence | 11DEG |
| Electrical | |
| Threshold Current lth | 40mA |
| Operating Current Lop | 130mA |
| Operating Voltage Voltage | 5V |
| PD current | 0.4mA |
| Thermal | |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -40~85℃ |
Drawing:
150mW 405nm TO Package Diode Laser offers reliable performance in a compact footprint, making it easy to integrate into OEM designs or lab setups. If you are interested in more details such as the datasheet, quotation, or lead time, we'd be happy to assist. We can also offer customized packaging or driver integration solutions upon request. Looking forward to your inquiry!
