High Power Fiber Coupled Diode Laser with Customizable Collimators Available

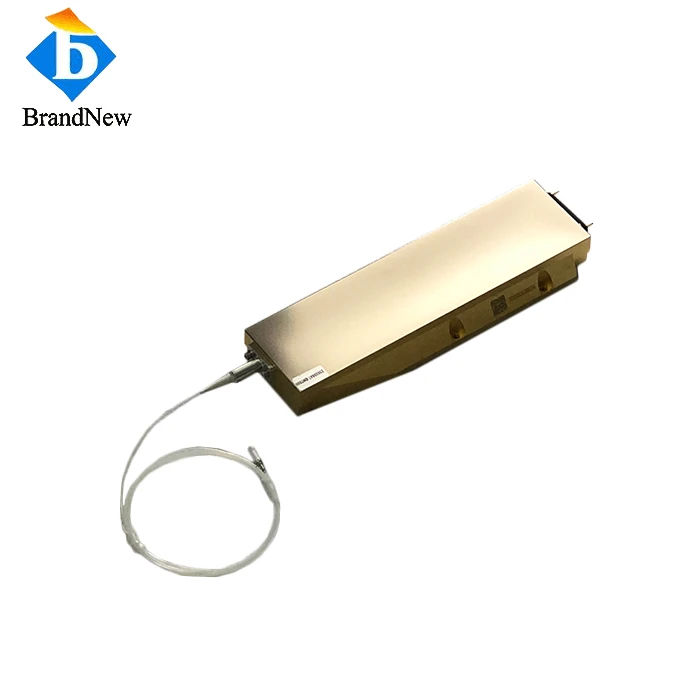

As new energy and industrial laser processing industries boom worldwide, high-power fiber coupled diode lasers have become core light sources for plastic welding, battery busbar welding and fiber laser pumping. Our FC976DL1200 976nm 1200W fiber coupled diode laser stands out for stable CW high-power output, high electro-optic conversion efficiency and reliable long-term operation, widely favored by system integrators from Europe, Russia, Southeast Asia and India.
However, raw divergent beam output from fiber tips restricts processing precision and consistency for kilowatt-level laser systems. That is why we provide customizable laser collimators perfectly matched with our 976nm high-power diode laser modules to solve beam divergence issues fundamentally.
How Our Laser Collimators Optimize Beam Quality
The collimator adopts one or multiple positive focal length lenses to converge divergent laser beams. The divergent light emitted from the fiber end will be reshaped into uniform large-diameter light with ultra-low divergence angle and consistent optical axis. It effectively reduces thermal loss, eliminates local over-burning and significantly improves processing precision and batch consistency for welding and cutting production lines.
Core Advantages of Custom Water-Cooled Fiber Laser Collimators
- Fitted with universal QBH/QB interfaces for seamless assembly with 1200W fiber coupled diode lasers. Built-in integrated water cooling system continuously takes away heat absorbed by lenses, effectively restraining thermal lens deformation under long-hour high-power CW operation.
Quick Installation with Standard Interface
- Wavelength coverage: 450nm, 900–915nm, 1060–1080nm; customized 976nm anti-reflection coating specially for our 1200W diode laser
- Optional lens diameters: 25mm (≤1000W), 40mm (≤2000W), 50mm (≤3000W); 40mm and 50mm models are the optimal match for our 1200W high-power laser
- Focal length customizable from 50mm to 250mm based on customers' actual processing station layout
Rich Customizable Parameters for High-Power Matching
- Suitable for supporting high-power laser equipment including plastic welding machines, new energy battery busbar welding stations and laser cutting systems. It maintains undistorted beams and stable power output under continuous 1200W working conditions.
Specially Designed for Kilowatt Industrial Laser Systems
One-Stop Custom Matching Solution for High Power Laser
Our technical team provides exclusive collimator customization service for the High Power fiber coupled diode laser. We can select matched lens diameter and focal length, and optimize water cooling parameters to achieve long-term stable collimation performance. OEM and ODM customization are supported for global laser equipment manufacturers.
Global Application Scenarios
Combination of 1200W 976nm fiber coupled diode laser + customized collimator is massively applied in new energy energy storage PACK welding, transparent PP/PE film transmission welding, photovoltaic coating curing and fiber laser pump source manufacturing.
If you need high-power fiber coupled diode lasers and matched customized laser collimators, welcome to send your technical requirements for professional parameter matching and quotation.
